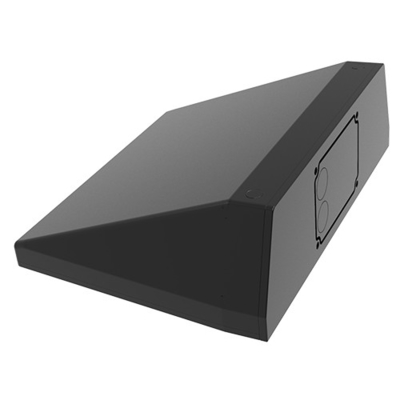

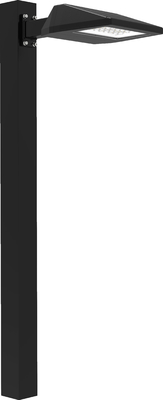

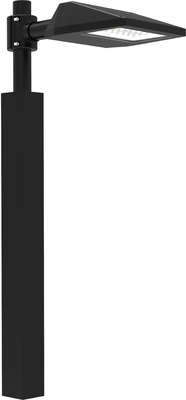

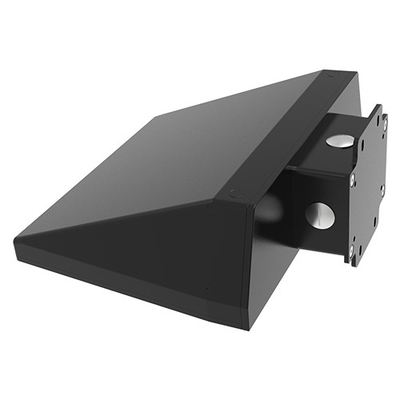

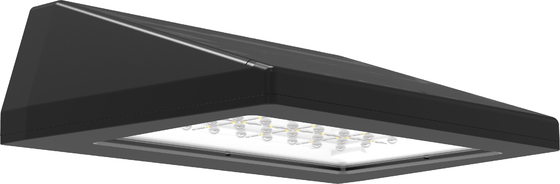

6000K LED Post Top Light IP66 IK09 Pole Mounted LED Light Fixtures

Brand Name:	Kingsway
Model Number:	AL
MOQ:	200pcs of each
Price:	Negotiable
Delivery Time:	Depend on order quantity
Payment Terms:	TT, OA

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UKCA ROHS ErP

Material:

Aluminium With Tempered Glass

LED Brand:

San'an LEDs

Driver Brand:

Sosen Driver

CCT:

6000K

Luminous Efficacy:

140lm/w

Beam Angle:

Type IV / Type V

Installation:

Surface Mounted Or On The Poles

Warranty:

5 Years

Packaging Details:

Standard package

Supply Ability:

Depend on order quantity

Highlight:

6000K LED Post Top Light

LED Post Top Light IP66

IK09 Pole Mounted LED Light Fixtures

Product Description

LED Post Top Garden Light IP66 IK09 LED Area Light Pathway Light Park Courtyard Lantern Light

Product Description

LED Post Top Light is high efficiency pole-mounted fixtures designed to offer superior energy efficiency and quality of light to light up pathways and outdoor areas like shopping malls and car parks. Wattage selectable and CCT selectable by remote controller, with multi fuction, like dimmable and emergency options are perfect for new installations or replacement of metal halide or high-pressure sodium lighting, which is an ideal choice for walkways, parking areas, and landscaped environments in commercial, industrial, and residential settings.

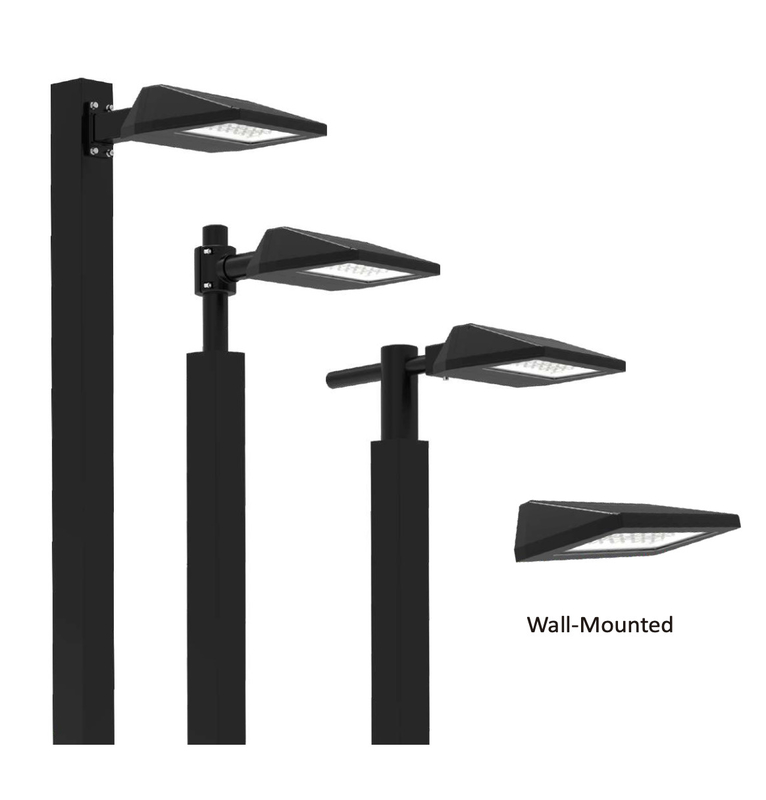

This Post Top Light is with an unique design, which is not only used as an post top light, but also a wall light fixtures. Beam angle can be Type II/III / Type IV / Type V, this can meet any demand for the projects.

LED post-top area light data sheet.pdf

6000K LED Post Top Light IP66 IK09 Pole Mounted LED Light Fixtures 0

6000K LED Post Top Light IP66 IK09 Pole Mounted LED Light Fixtures 1

Features

●Aluminium with Polycarbonate or tempered glass

●Lumileds or San'an LEDs and Inventronics Driver

●Ultra high efficiency up to 140lm/w

●Surge protection 10KV

●Multi optics, Type II/III / Type IV / Type V

●Protection,OTP,OCP,OVP,SCP

●Suitable for wet locations, IP66 rated and IK09 rated

●Multi installation,wall mounted, racket munted or post top.

●Operation Condition temp:-30 ° to +50 °, Humidity:10%-90%RH

●Options for DALI or 1-10V dimming

●Reduces spill light and glare, Zero uplight, LEDiL lens for excellent light control

Specification

Model	Power	Light efficiency	Luminous Flux	Input Voltage	Dimension	IP code	Warranty
KS-AL-30	30W	>140lm/w	4200LM	AC100-277V	328*240mm	IP66	5 year
KS-AL-50	50W	>140lm/w	7000LM	AC100-277V	328*240mm	IP66	5 year
KS-AL-70	70W	>140lm/w	9800LM	AC100-277V	328*240mm	IP66	5 year
KS-AL-100	100W	>140lm/w	14000LM	AC100-277V	328*240mm	IP66	5 year
